Ubiquiti Networks UniFi U6 In-Wall AP & 4-Port PoE Gigabit Switch: 5.3 Gb/s Throughput, 1 x Gigabit PoE Uplink, In-Wall Mount, White | U6-IW
Ubiquiti Networks UniFi U6 In-Wall AP & 4-Port PoE Gigabit Switch: 5.3 Gb/s Throughput, 1 x Gigabit PoE Uplink, In-Wall Mount, White | U6-IW
Couldn't load pickup availability

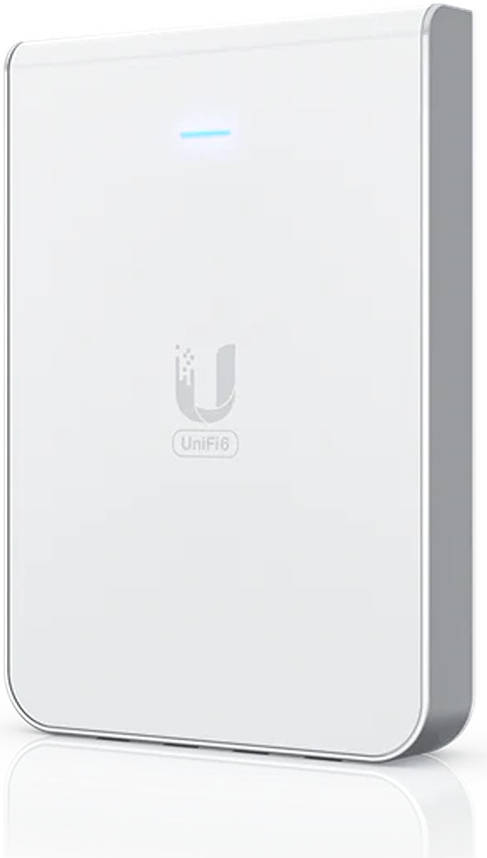

Expand your business's Wi-Fi coverage and network capacity with UniFi U6 In-Wall Dual-Band Wi-Fi Access Point & 4-Port PoE Compliant Gigabit Switch. This versatile device primarily performs as a Wi-Fi 6 (802.11ax) access point that's designed for in-wall installations, where it may discreetly blend in with the environment while providing up to 5.3 Gb/s data transfers over the 2.4 GHz and 5 GHz bands. It also includes four Gigabit Ethernet ports, each of which support up to 15.4W PoE to operate compatible devices such as VoIP phones and additional access points.
- Wi-Fi 6 (802.11ax)
- Up to 5.3 Gb/s Throughput
- 2.4 GHz / 5 GHz (Dual-Band)
- 4 x Gigabit PoE Compliant Ports
- 1 x Gigabit PoE Compliant Uplink Port
- In-Wall Mounting
- Includes Mounting Kit
- Works with UniFi Network Application
- High-efficiency, four-stream WiFi 6 technology
- 5 GHz WiFi 6 band (4x4 MU-MIMO and OFDMA)
- 2.4 GHz WiFi 6 band (2x2 MU-MIMO and OFDMA)

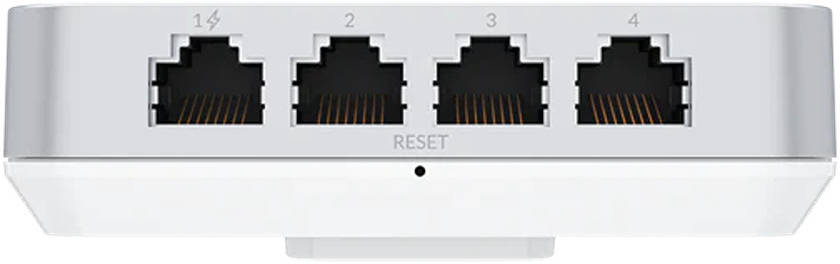

- (4) GbE RJ45 ports, including one that supports PoE output
- 300+ client capacity
- Simple, Bluetooth-powered setup via the UniFi Network web application or mobile app
Specification
| Mechanical | |||||
|---|---|---|---|---|---|
| Dimensions |
139.66 x 96 x 31.19 mm (5.5 x 3.78 x 1.28") |
||||
| Weight |
460 g (1.01 lb) |
||||
| Enclosure materials |
Plastic, aluminum |
||||
| Mount material |
Aluminum |
||||
| Hardware | |||||
| Management interfaces |
Ethernet Bluetooth |
||||
| Networking interfaces |
(1) Data-in: 1GbE RJ45 port (4) Data-out: 1GbE RJ45 ports |
||||
| PoE interfaces |

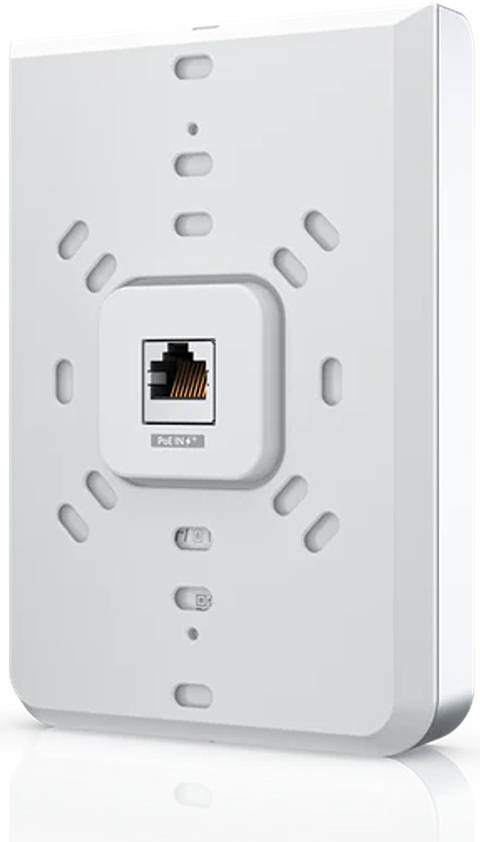

(1) PoE in (PoE output not used) |
||||
| Button |
Factory reset |
||||
| LED |
White/blue |
||||
| Power method |
PoE |
||||
| Power supply |
UniFi PoE switch |
||||
| Max. power consumption |
Excluding PoE output: 13.5W |
||||
| Max PoE wattage per port by PSE |
15.4W* |
||||
| Voltage range PoE mode |
44—57V DC |
||||
| Max. TX power |
|
||||
| MIMO |
|
||||
| Throughput rate |
|
||||
| Antenna gain |
|
||||
| Operating temperature |
-30 to 60° C (-22 to 140° F) |
||||
| Operating humidity |
5 to 95% noncondensing |
||||
| Certifications |
CE, FCC, IC |
||||
| Software | |||||
| WiFi standards |
802.11a/b/g |
||||
| Wireless security |
WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3) |
||||
| BSSID |
8 per radio |
||||
| VLAN |
802.1Q |
||||
| Advanced QoS |
Per-user rate limiting |
||||
| Guest traffic isolation |
Supported |
||||
| Concurrent clients |
300+ |
||||
| Zero-wait DFS |
Yes |
||||
| Supported Data Rates | |||||
| 802.11a |
6, 9, 12, 18, 24, 36, 48, 54 Mbps |
||||
| 802.11b |
1, 2, 5.5, 11 Mbps |
||||
| 802.11g |
6, 9, 12, 18, 24, 36, 48, 54 Mbps |
||||
| 802.11n (WiFi 4) |
6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40) |
||||
| 802.11ac (WiFi 5) |
6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160) |
||||
| 802.11ax (WiFi 6) |
7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160) |
||||
